| Description |
- Low cost
- Multi-Functional
- Easy to Install
- Energy efficient

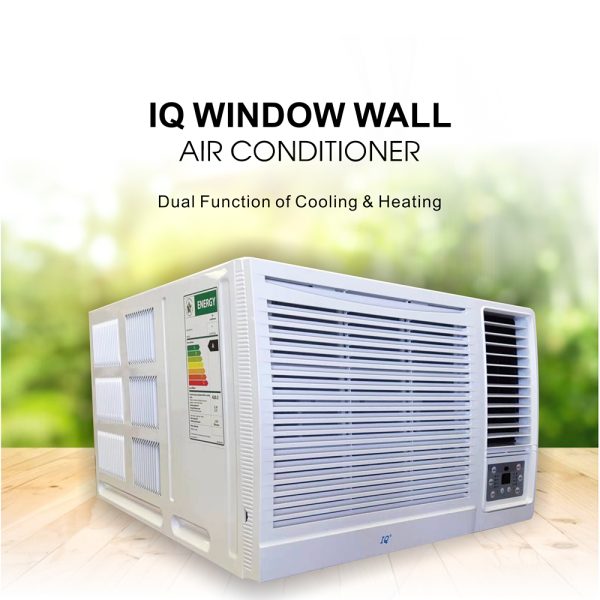

IQ Window wall air conditioner is supported by the latest advanced technology, digitally controlled cooling and heating dual function. It's a single unit with all of the parts and components contained inside one casing. It is ideally mounted or installed in a window or in a wall and enjoy the comfort of air and temperature with plugging it into a traditional electrical outlet.
| Anti-condensation
Flocking design, good thermal insulation effect, avoid large temperature difference, anti-condensation
Bigger Air Flow Volume
Innovative centrifugal fan with larger diameter, supply bigger air flow volume and lower noise.
Fresh air
Fresh air intake design to improve air quality.
The independent electric box lid
Easy to connect power line and controller line don't need to disassemble the electric box lid when installation
Easy drainage
Left and right water outlet design of water connection plate, flexible for installation site.
Mid ESP Duct
Built-In Drain Pump (Optional)
The built-in drain pump can lift condensation water up to 700mm high from the drainage pan.
High Static-Pressure
Adjustable static pressure from 0 Pa to maximum 160Pa.
Flexible Installation
Air intake from rear as standard, from bottom is optional. The size of the plate from bottom is the same as the flange from back, which makes it convenient to change installation style due to different decoration requirements.
Self-adaption technology
Automatic ESP Adjustment function will adapt the unit to any ducting with optimized air volume and minimized noise level automatically, making more comfortable in any situation.
Cassette
Built-In Drain Pump
The built-in drain pump can lift condensation water up to 1200mm high from the drainage pan.
Fresh Air Intake
Fresh air makes indoor air healthy and comfortable
|
- Auto Restart function
- Anti-cold air
- Compressor Heating Belt
- Hydrophilic Aluminium Fin
- Low Ambient Cooling
- Fast Cooling/Heating
- Long Term Filter
- Intelligent Defrosting
- Self-Diagnosis function
- Remote Control
- Central Control
- WIFI Control
Three Speeds Fan Motor
Outdoor unit 3 fan speeds with better low temp, cooling.
Long Distance Air Supply
High ESP design makes the air supply the longest distance(50m), and the air supplied is distributed well.
Wide Operation Range
Advanced system design,strict system matching and test,the unit could operate perfectly between 52°C in hot summer and -15°C in cold winter making you feel like spring all year around.
Touch Screen Design
Elegant touch screen design, longer lifetime than traditional button design.
Innovative Diversion Design
The special design at air inlet side makes strong air flow more even and more client.
Ultra-Slim Design
The indoor unit is only 36cm in width, save installation space. |
-
- STERILIZATION
- HEALTHY
- COMFORTABLE
- INTELLIGENT
- SAFE
- EFFICIENCY
Directly Install PCB
the Motherboard is easy to disassemble and assemble: the Motherboard can be disassemble without removing the middle frame, which is convenient to disassemble and assemble, and the maintenance efficiency is improved by 50%.
Fluoride Leakage Protection
It can Monitor the Leakage of Freon. when leakage occurs, the Control system will immediately shut down so as to protect core components such as compressors from damage.
High temperature sterilization at 57 °C
The evaporator tube temperature maintains a high temperature of 57 °C and lasts for a period of time to ensure the sterilization effect.
Smarter control, More Energy-saving
0.3W stand by
with newly designed PCB, the 0.3W Standby mode enable IQ Products to cut energy consumption from 4-5W to 0.3W, compared with conventional air conditioners.
Intelligent Power Consumption
Users can set the expected power consumption and power consumption mode for a period of time in the APP, and the air conditioner will automatically adjust the power con sumption after it is turned on; After setting, the air conditioner will execute according to the above objectives, adopting intelligent control algorithm, reasonable cold output.
| Features
- 1. Various products and wide application
The series of Rooftop units include many different specifications which can completely meet the demand of home and
commercial places and offer you a comfortable and pleasant environment.
2. Complete air system, simple and hygiene, less components, easy maintenance
The flexible and concise design makes the maintenance very simple. Disassembling several bolts from any side of the unit
can repair any part of the unit.
3. Microcomputer intelligent controller can reach four control modes: cooling, dehumidifying, and ventilation. It also has
the functions of timing on-off and failure display.
4. Excellent performance
World well-known brand of main parts are used. To guarantee the rational match of the unit, strict performance testing
is done. Besides the unit runs steady and the vibration and noise are effectively controlled by the use of multi-vane pitch
centrifugal fan, world-known high efficiency compressor and the elaborative-designed controller, motor, etc.
5. Quiet operation and Convenient maintenance
Reach the lowest noise of the a/c room. The a/c units are placed far from the a/c area which meets the demand of indoor
low noise to the greatest degree. The adoption of high efficiency and low noise centrifugal fan makes the quiet operation
come true
Free cooling logic:
- When it is cooling:
a. When indoor room temperature (temperature set) – outdoor temperature ≥ 4 ℃，fresh air damper is 100% open,
and return air damper is 100% closed，only the evaporator fan is running to blow air into room;
b. When 0 ℃ ≤ indoor room temperature (temperature set) – outdoor temperature< 4 ℃ ，both fresh air damper
and return air damper are closed, and the unit is not running;
c. When indoor room temperature ( temperature set) – outdoor temperature < ０℃，the return air damper is 100%
open，and fresh air damper is 100% closed，then the compressor, condensing fan and evaporator fan will work normally
to blow cool air into room.
- When it is heating:
It operate in similar way as for free cooling.
Optional heat recovery
Available with a hygroscopic or non-hygroscopic rotor for recovering and transferring
heat energy from the exhaust to the supply air streams.
Optional filter
G3 aluminium filter is standard, optional preliminary, medium filter are
optional.
Optional supply air outlet and return air inlet at the unit bottom
It is optional to have the supply air outlet and return air inlet at
bottom.
Optional MEPS efficiency
It is optional to have the units with efficiency as per MEPS standard.
Dimension
IQRTU72, 96, 125
NOTES:
1. Unit installation hole 4xΦ12.5；
2. Unit lifting hole 4xΦ35；
3. Control box ；
4. Power supply cable inlet hole Φ22；
5. Communication cable inlet hole Φ16；
6. Drain water pipe diameter 1".
IQRTU168, 180
NOTES:
1. Unit installation hole 4xΦ12.5；
2. Unit lifting hole 4xΦ35；
3. Control box ；
4. Power supply cable inlet hole Φ22；
5. Communication cable inlet hole Φ16；
6. Drain water pipe diameter 1".
IQRTU210, 250
NOTES:
1. Unit installation hole 4xΦ12.5；
2. Unit lifting hole 4xΦ45；
3. Control box ；
4. Power supply cable inlet hole Φ35；
5. Communication cable inlet hole Φ22；
6. Drain water pipe diameter 1".
IQRTU300, 360
NOTES:
1. Unit lifting hole 4xΦ50；
21. Unit installation hole 4xΦ12.5；
3. Power supply cable inlet hole Φ45；
4. Communication cable inlet hole Φ16；
5. Control box ；
6. Drain water pipe diameter 1".
IQRTU415, 480, 520
NOTES:
1. Unit lifting hole 4xΦ50；
21. Unit installation hole 4xΦ12.5；
3. Power supply cable inlet hole Φ35；
4. Communication cable inlet hole Φ16；
5. Control box ；
6. Drain water pipe diameter 1".
IQRTU630,750
NOTES:
1. Unit lifting hole 4xΦ50；
2. Unit installation hole 4xΦ12.5；
3. Power supply cable inlet hole Φ50；
4. Communication cable inlet hole Φ16；
5. Control box ；
6. Drain water pipe diameter 1".
IQRTU1023
NOTES:
1. Unit lifting hole 4xΦ50；
2. Unit installation hole 8xΦ12.5；
3. Power supply cable inlet hole Φ80；
4. Communication cable inlet hole Φ16；
5. Control box ；
6. Drain water pipe diameter 1". | Dual-direction Swing, Wide Swing Angle
Vertical and horizontal swing function makes it possible to blow air to every corner of the room.
Flexible Installation
Compact structure Can be vertically installed against the wall or horizontally installed under the ceiling.
Ultra Slim Design
The thickness is only 205mm, save installation space.
Adjustable Fan Speed, Innovative Centrifugal Fan
All units are equipped with 3-speed fan mode, adjusting the air flow rate in accordance with the ceiling height. Innovative centrifugal fan, provides larger air volume but with lower noise, making the air supply more quietly and smoothly.
Low Ambient Cooling
The unit has the feature that keeping running under low ambient temperature, even in -5°C.
Optional Noble Belt
Noble belts supply luxury appearance.
Long-term Air Filter
The latest long-term air filter ensures better air quality. Meanwhile, the cleaning frequency has been decreased, and maintenance is also much easier.
|
